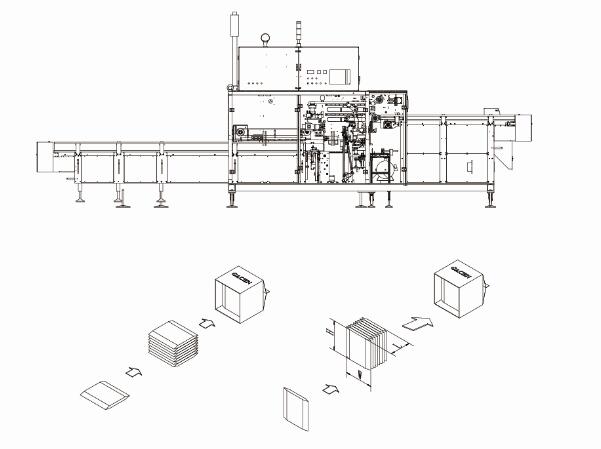

Model：GM-088WY

Packing speed: the design speed 70 bags/min

yield:≥98%

working efficiency：≥90%

packaging method: prefabricated bags, chinese bags and European bags

packaging film: OPP film, complex film, single layer thickness≤70μm

packaging dimension: inserted pads, stickered pads, stacking height≤90mm

three size dimension: L6.3m×W1.5m×H2.0m

DW: about 2500KG

Installation power: about 16KW

Power requirement: three phase four wires （A、B、C、PE），380V/50Hz

Air requirement: input pressure-0.6-0.8MPa, air consumption ≤300LPM

Characters

The full servo driving

by adapting Mitsubishi and Yaskawa motion controlling PLC and general linear servo driving system, it ensured a highly accurate package and stability.

Patented angle line structure

highly proved as the most accurate and stable angle line structure.

Zero mm film cutting

Adapting thehandcraft bags, especiallt for OPP films, clear angle line and tidiness sealing line can be ensured regardless of cutting waste films.

High popularity

suited for chinese type bags and European type bags.

Patented opening bag structure

the servo controlled opening bags structure can adapt to different sorts of packaging dimensions, by adjusting the data can achieve a exchange of products.

Human touched pad

By saving the different sort of products data, for exchange of products requirement, easily can be made in this way.
